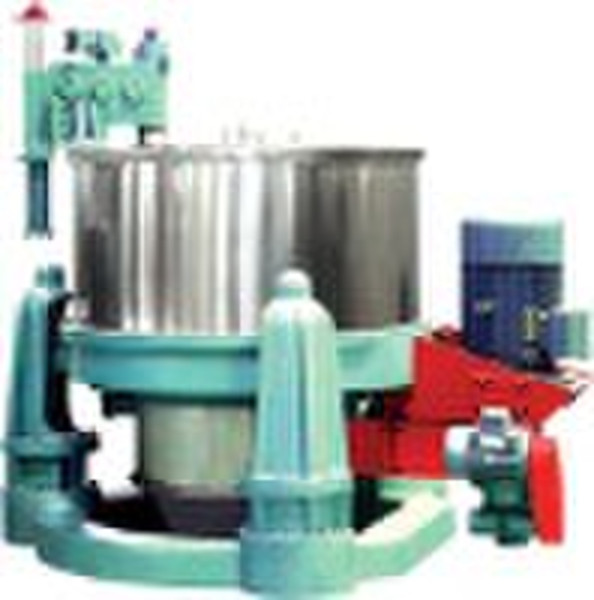

SGZ bottom diacharging scraper centrifuge

Principles : SGZ scrape centrifuge is a kind of filtering equipment which adopts bottom discharging and interval operation. The material is fed from the upper part and enters int o the rotary drum. Under the function of centifugal force. The liquid passes through the filtering medium and discharges out of the machine while the solid is left in the rotatory drum,. When the rotary durm slowes down. the scraper scrapes the solid which will be discharged from the bottom of the machine.ApplicationIt is suitable to separate the suspension whose solid is larger than 0.05mm and desity is between 6%-50%. It is widely used in the chemical , pharmacy, food and light industry..Technical specifications:modelSGZ800SGZ1000SGZ1250drum diameter mm80010001250drum volume L100155280max capacity kg140250420drumspeed r/min12001000900operating centrifugal force645560565motor power kw7.51118.5size mm1900*1550*22502150*1750*24002500*2000*2500weight kg250035004500Notes: 1. The customer who asks about products please inform us of the characteristic parameter of material and the operating condition. 2. The design and the manufacturing of individuation are available: - Material: Carbon steel, common stainless steel, special stainless steel, titanium alloy, rubber-lined carbon steel and plastic-lined carbon steel can be used for the material of the parts suspension contacts. -Type of motor: conventional motor, explosion-proof single-speed motor, two-speed motor or electromagnetic speed-adjustable motor. -Mode of brake: mechanical brake or electric brake. -Electric control: semi-automatic, full-automatic or controlled with PLC Program, etc. -Feed Speed : regulated selected with step-change speed-adjustment, electromagnetism speed-adjustment or frequency conversion speed-adjustment. -Discharge speed: regulated with supplementary motor speed-adjustment, electromagnetism speed-adjustment or frequency conversion speed-adjustment. -Type of cover: open, simple closed or integral-overturned- closed. -The mode to open the closed cover: with hydraulic cylinder, pneumatic cylinder, electromotion cylinder or mechanical balancer. - Type of foundation: common foundation or no foundation. - Designs and manufacturing are supplied according to the standard of GMP. -Other technical demands could be discussed.
