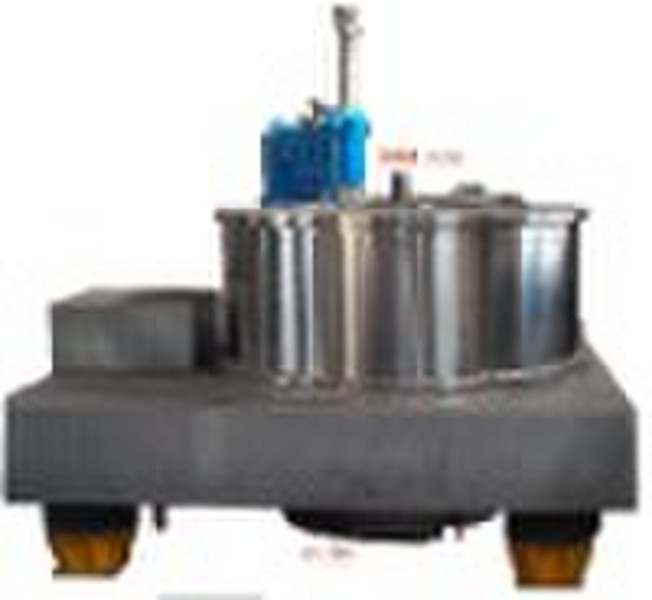

LGZ pharmaceutical centrifuge

Standard Manufacturing Form: LGZ pharmaceutical centrifuge Structure: Feeding pipe; washing pipe;observation widow; exhaust hole lightening hole ;The sealing structure;rotating drum and outshell;304 stainless steel cover; chassis parts are made of cast material, the surface is covered with stainless steel. The rotating drum, inside and outside surfaces of the outshell, the exposed parts of the machine have all been polish treated. All tightening parts are made of stainless steel. PLC control is applied. Electrical material procedure control Transmission and brake ;normal motor(or explosion prevention motor) + frequency modulator+power consumption brake Pneumatic system Non foundation form (balance piece + imported high precision liquid type resistance vibration separation system). Device for choice Washing & cleaning spray system Nitrogen protection system Frequency emission material procedure control Touch screen control Hydraulic operation system Pneumatic auxiliary scraper Choose the corresponding stainless steel (such as SUS304,316,316L,321,TA2)according to the customer's erosion proof requirement for separated material. item LGZ800LGZ1000LGZ1250Drum diamter(mm)80010001250Drum thick(mm)8-1010-1212-14Drum max charge capacity (L)115175400Max volume(KG)155250530Drum rotational speed(r/min)1200-15001000-1200960-1000G-force645-1008560-806645-770Power of motor (KW)7.5-1111-1518.5-22Size(L*W*H)1850*1450*20502000*1550*21502000*2450*2150Weight(kg)250035005000
